TELEPHONE_RINGING_DETECTORFREQUENCY_AND_VOLUME_CONTROLLED

Published:2009/7/6 20:28:00 Author:May | From:SeekIC

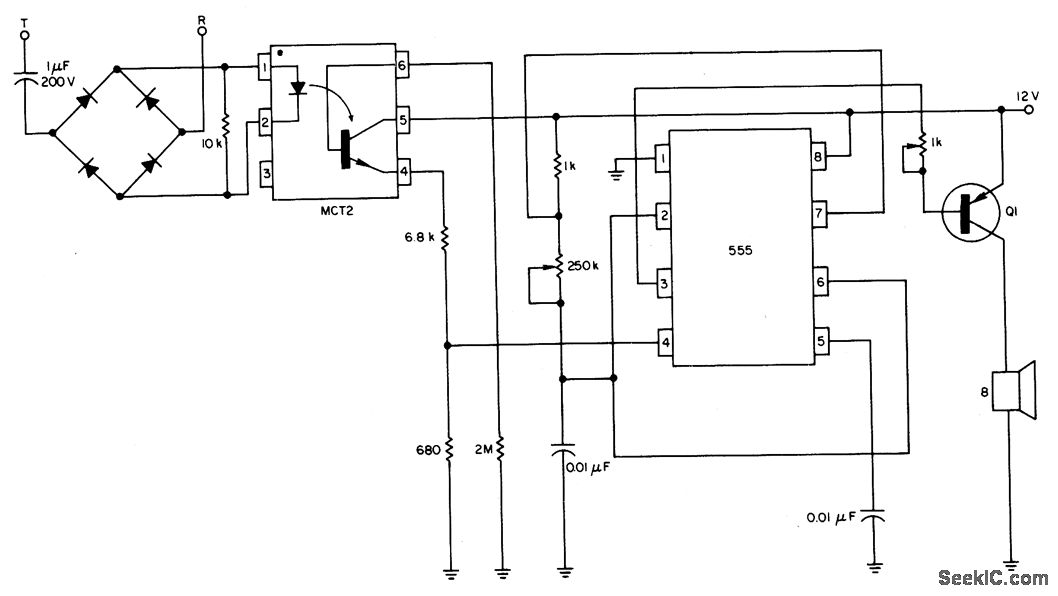

With the 555 timer connected as a multivibrator and an opto-isolator, a remote speaker can be driven.
