The circuit of fans with display functions

Published:2011/6/6 23:09:00 Author:qqtang | Keyword: fans, display | From:SeekIC

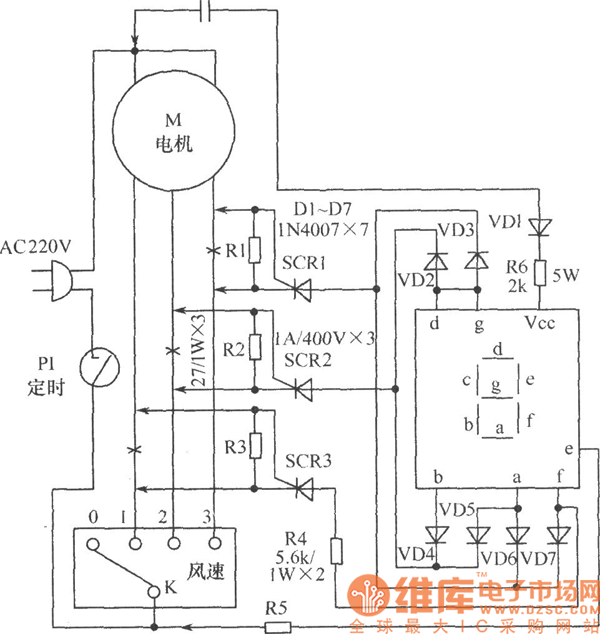

The principle circuit is shown in the following figure, it cuts off the X spots of the speed phase lines in turn, and links to the step-down resistors of R1~R3. When the wind speed switch K is on some gear, the conducting current provides the LED digital pipe with power by VD2~VD7, and now the gear number can be displayed. When the gear switch K is shifting, the coil circuit is cut off.
