Thermostatical electric radiator circuit using TC621

Published:2012/9/14 2:59:00 Author:Ecco | Keyword: Thermostatical, electric radiator | From:SeekIC

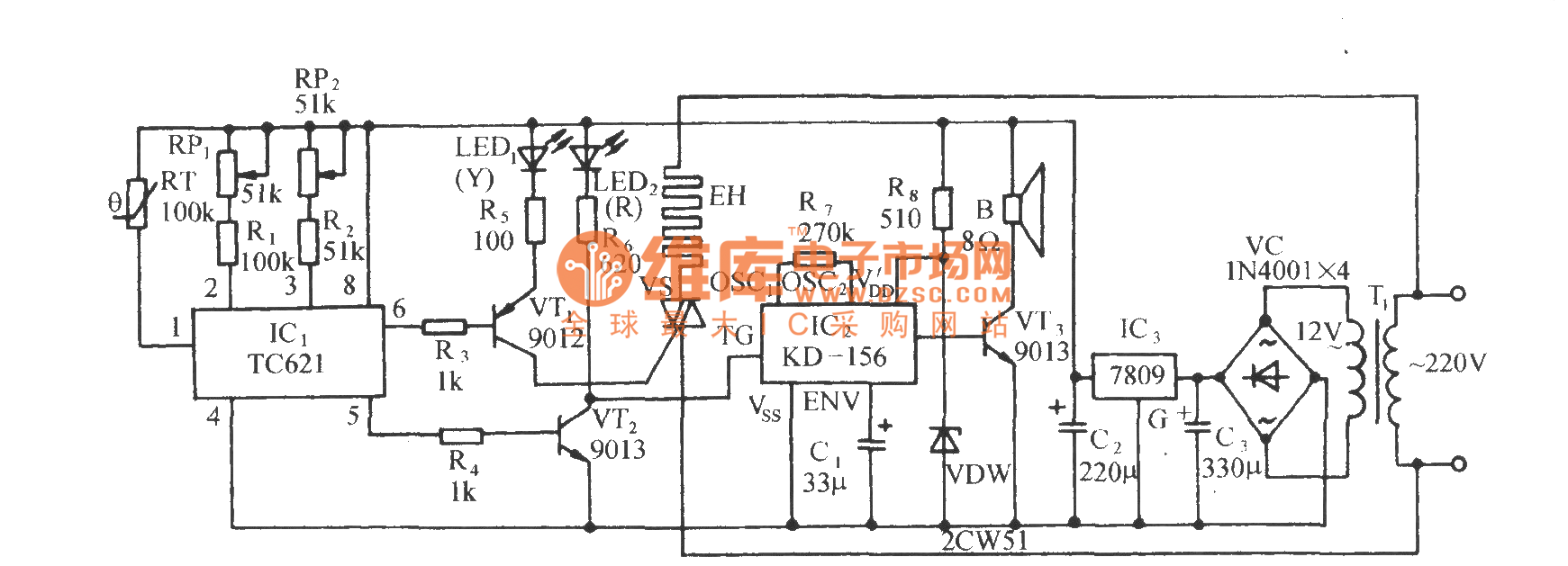

As shown in the circuit, the circuit consists of temperature control switch circuit, SCR trigger control heating circuit, music sound circuit and AC buck rectifier circuit. The circuit has wide temperature control range, simple line, good temperature control, and it does not have mechanical contacts, so it is safe, reliable, easy to set upper and lower limits of temperature. It can be widely used in the family bathroom, livestock, poultry sterile raising room and other occasions.
