Time_delay_circuit_using_a_UJT

Published:2009/7/21 22:40:00 Author:Jessie | From:SeekIC

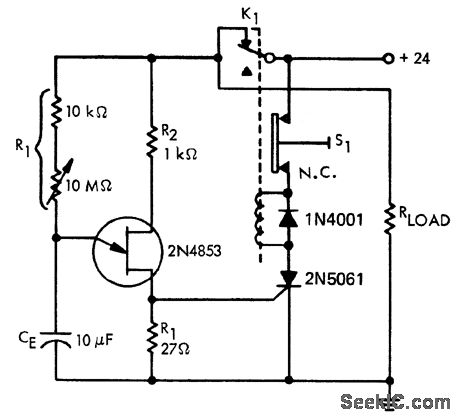

Time delay circuit using a UJT. Maximum time delay is set by the 10M pot. Time delay can be set from less than a second to approximately 2.5 minutes (courtesy Motorola Semiconductor Products Inc.).
