Transition_slew_rate_tests

Published:2009/7/23 23:56:00 Author:Jessie | From:SeekIC

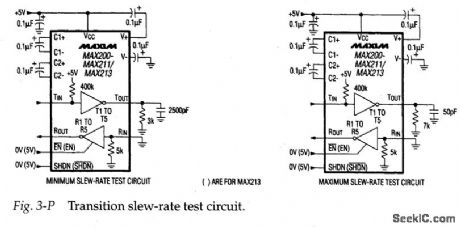

Figure 3-P shows a transition slew-rate test circuit for the MAX200/11/13. (Slew rate is covered in Chapter 6.) For reference, the slew rate is 5.5V/μs (typical) and 30V/μs (maximum) for the ICs involved.
