Tuning_fork_stabilized_frequency_standard

Published:2009/7/25 3:46:00 Author:Jessie | From:SeekIC

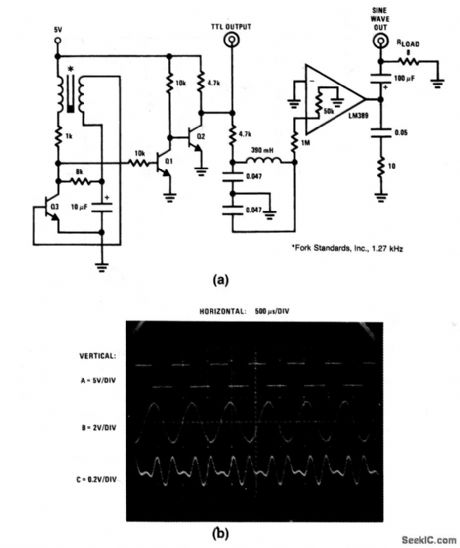

This circuit provides both sine and TTL outputs, operates from 5V with low power consumption. Figure 5-26B shows typical waveforms.Trace C is the output of a distortion analyzer connected to the sine output (with has less than 1% distortion, and will drive an 8-Ω load).
