WAILING_SOUND_GENERATOR

Published:2009/6/23 4:45:00 Author:Jessie | From:SeekIC

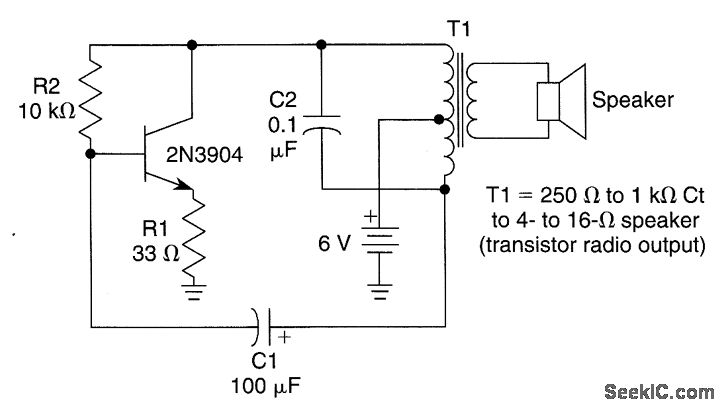

In this circuit, C2 and T1 determine the tone generated and C1/R1 control the blocking rate. The signal produced is an interrupted tone, like a police whistle or toy ray gun, depending on C1 and C2.
