Wideband_difference_amplifier

Published:2009/7/23 21:08:00 Author:Jessie | From:SeekIC

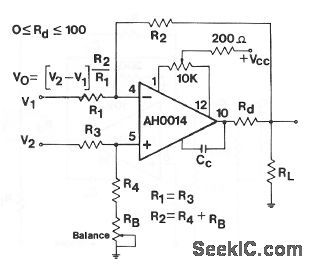

This circuit shows an AH0014 connected as a basic differential or instrumentation amplifier with a balance adjustment. The balance resistor is adjusted for best common-mode rejection ratio. Figure 3-48B shows external connections for the AH0014.
