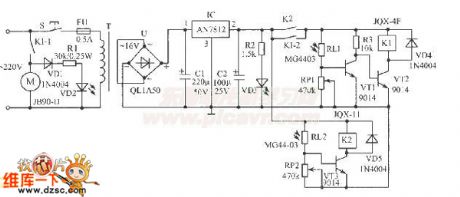

Electric power blender is usually used in industrial and mining enterprises.Because the mixed material produce scent and powder,workers are not suitable to contact too close.A light controlled electric blender(or other circuit )circuitshown in the figure, uses common flashlight beam as remote control instruction, which can control blender operation in 10m.This circuit can be enclosed in a plastic box,which is used very convenient. components and parts:IC selects AN7812 three-terminal voltage IC.VT1~VT3 uses 9014 dynatron.RL1 and RL2 uses MG44-03 type plastic resin encapsulated photosensitive resistant,or selects other common photosensitive resistant (light 5KΩ,dark ≥1MΩ) instead.VD2,VD3 are LEDs.T is 8W~10W power transformer.Other selected components and parts are shown as figure.
