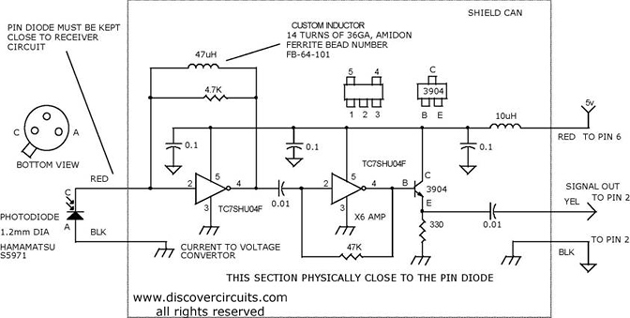

10MHz TO 20MHz LIGHT RECEIVER

Published:2012/9/6 20:44:00 Author:Ecco | Keyword: 10MHz TO 20MHz, LIGHT RECEIVER | From:SeekIC

Light power to volts conversion= approx. 15mV per microwatt at 850nM Source: discovercircuits
