1O_STATE_RING_COUNTER

Published:2009/7/15 21:06:00 Author:Jessie | From:SeekIC

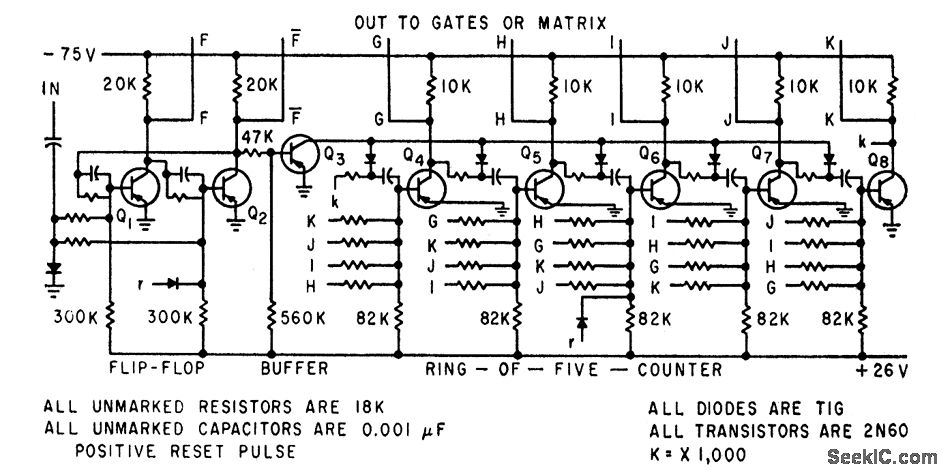

Flip-fiop drives ring-of-five stage that in tum drives diode malrix which trcnslales each slored deci-mal number to electroluminescent display segment code.-R. C. Lyman and C. I. Jones, Eleclroluminescenf Panels for Aulomatic Displays, Electronics, 32:28, p 44-47.
