1_CPS_FLASHER

Published:2009/7/14 4:37:00 Author:May | From:SeekIC

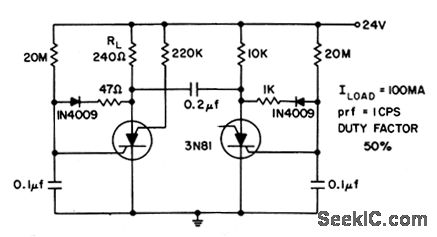

When one scs triggers on, 0.2-mid commutating capacitor turns off other scs and charges its gate capacitor to negative potential. At point in charging determined by 20-meg resistor, scs is retriggered .Battery power is delivered to load with 88% efficiency.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 434.
