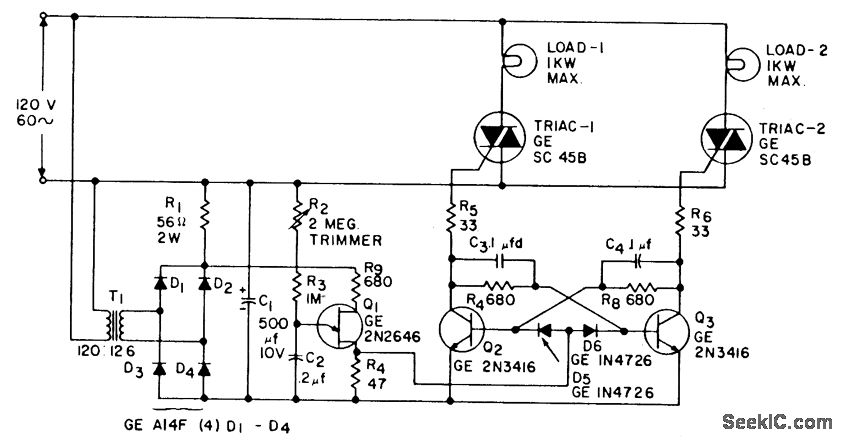

1_KW_FLIP_FLOP_FLASHER_CIRCUIT

Published:2009/6/30 23:27:00 Author:May | From:SeekIC

This is an application of the static switch circuit where the control logic is a flip-flop which is controlled by the unijunction transistor. The flashing rate can be adjusted from about 0.1 second to a 10 second cycle time.
