1_kilowatt_flasher_with_photoelectric_control

Published:2009/7/20 0:03:00 Author:Jessie | From:SeekIC

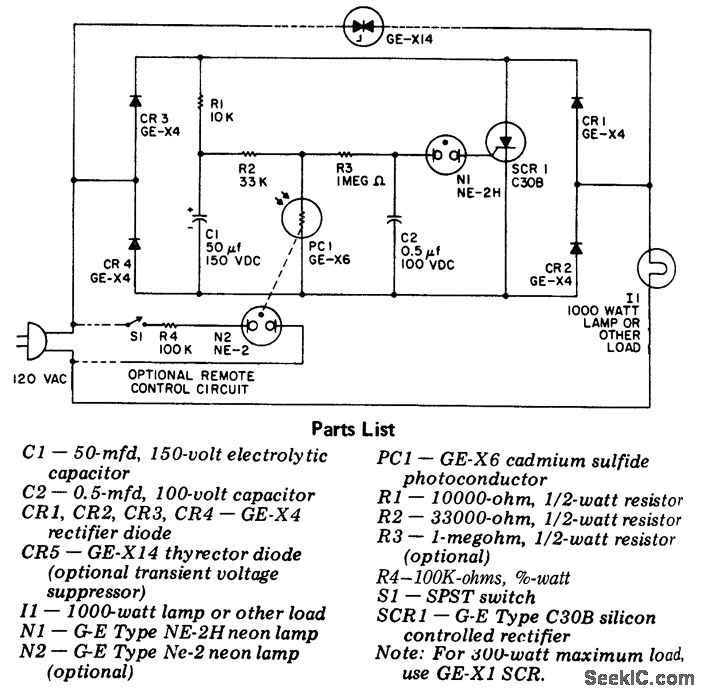

1-kilowatt flasher with photoelectric control. This circuit can be used to control warning lights on towers, piers or construction hazards. Remote control can be attained by adding neon lamp N2 and masking PC1 so that it sees only N2 (courtesy General Electric Company).
