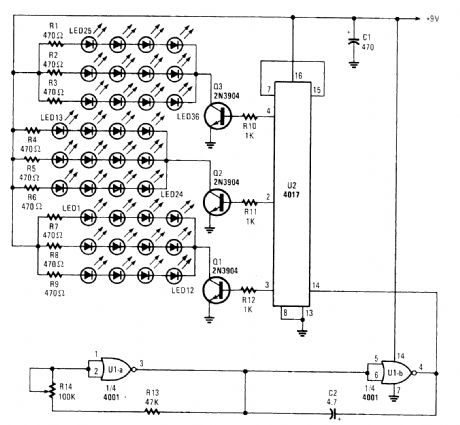

36_LED_Flasher_Driver

Published:2009/6/16 23:48:00 Author:May | From:SeekIC

Originally intended as a 3-bell animation circuit for Christmas decorations, the circuit can be used for many other purposes that require a flasher of this kind. By re-connerting U2(see the data manual), more than three outputs can be be obtained.
