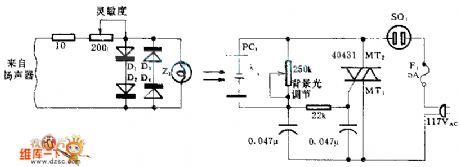

500 w Light modulation circuit diagram

Published:2011/4/20 10:00:00 Author:Rebekka | Keyword: Light modulation | From:SeekIC

When the circuit is connected to the hi-fi equipment or at both ends of the electronic instruments speaker, the audio level can be modulated to 500W lamp by proportion. Using 3 appropriate sets of audio filters and 3 different color light Union microscopy to access to color music stage lighting effects.
