60_W_FLASHING_LIGHT

Published:2009/7/6 9:01:00 Author:May | From:SeekIC

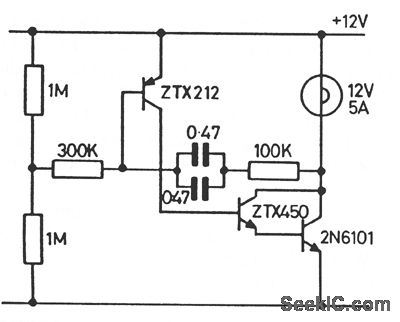

The 2N6101 transistor should be mounted on a small heatsink. The 300-KΩ resistor controls the off period and might need to be adjusted if transistor gains are high. The 100-KΩ resistor controls the on period.
