8_DIGIT_LED_DRIVE

Published:2009/7/1 20:25:00 Author:May | From:SeekIC

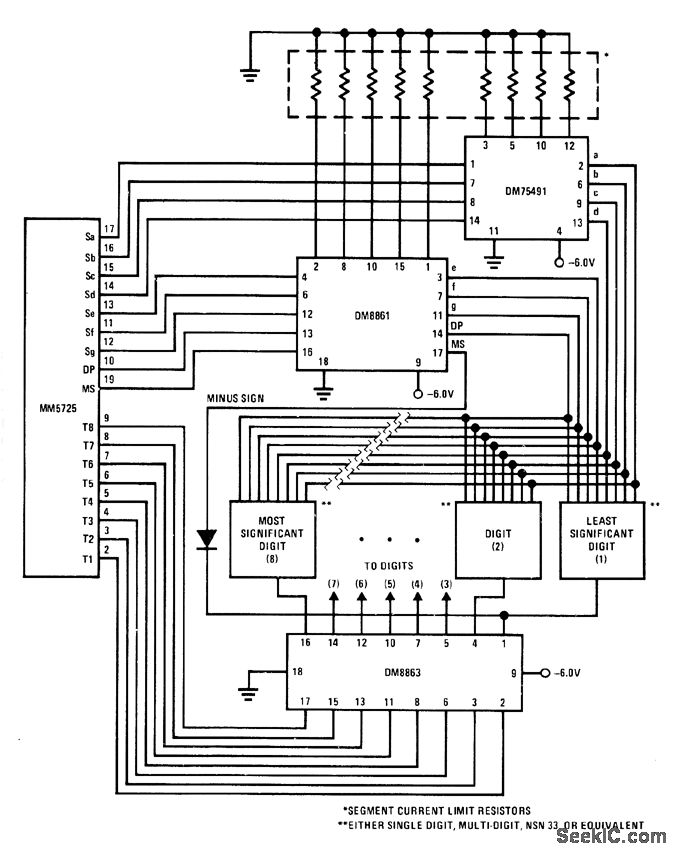

National DM8863 8-digit LED driver is used Inconjunction with DM75491 and DM8861 drivers for driving eight commonmode LED digits operating in multiplex mode．Circuit also provides logic control for decimal point．－C Carinalli, Driving 7-Segment LED Displays with National Semiconductor Circults, National Semiconductor,Santa Clara,CA,1974,AN-99,p 10.
