ACTIVE_HIGH_TRIAC_INTERFACE

Published:2009/7/13 21:34:00 Author:May | From:SeekIC

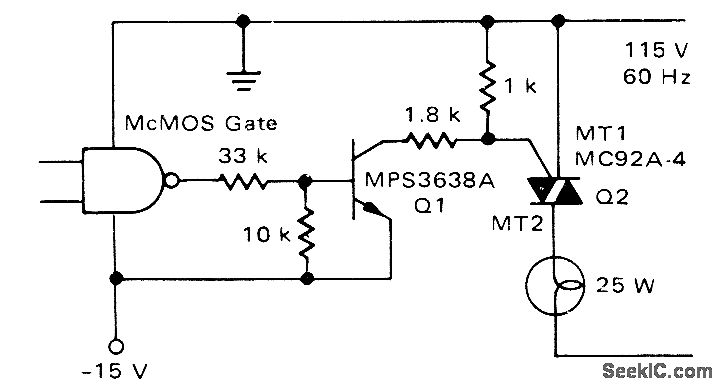

Typical CMOS logic gate operating from negative supply triggers triac on negative gate current of 8mA for control of 25-W AC load. High supply lines for both logic gate and interface transistor are grounded.-A.Pshaenich, Interface Techniques Between Industrial Logic and Power Devices, Motorola, Phoenix, AZ, 1975, AN-712A, p 12.
