AC_DC_SUPPLY_LED_CIRCUIT

Published:2009/7/13 4:12:00 Author:May | From:SeekIC

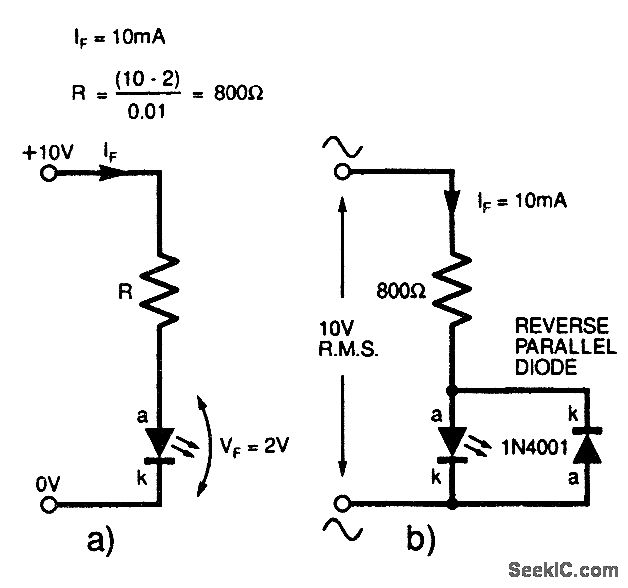

(a) Series resistor calculation; (b) using an LED on an ac supply.
