A single switch controlling three lights

Published:2011/4/6 20:47:00 Author:Ecco | Keyword: single switch, controlling , three lights | From:SeekIC

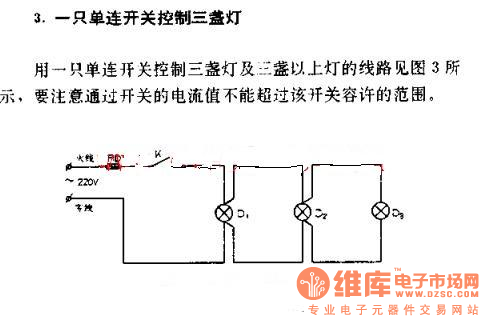

A single switch controlling three lights The circuit of a single switch controlling three lights and over three lights is shown in Figure 3, we should note that the current through the switch can not exceed the limit of the switch.
