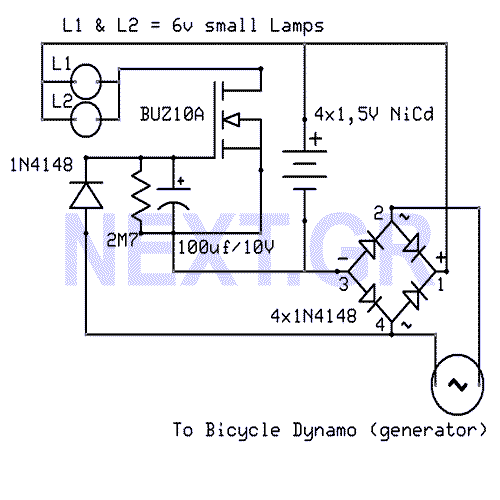

Advanced bicycle lighting Schematic

Published:2012/9/12 21:16:00 Author:Ecco | Keyword: Advanced, bicycle lighting | From:SeekIC

That Circuit is an advanced bicycle lighting system which will power your lights and also charge four NiCd batteries while you running in the streets, for keeping the lights on while the bicycle is stoped. Its fully automated without any switches. Source: NEXT.GR
