CONSTANT_BRIGHTNESS_LED_CIRCUIT

Published:2009/7/13 4:36:00 Author:May | From:SeekIC

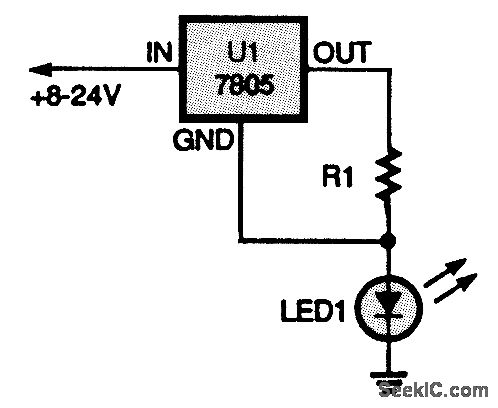

This setup ensures that the LED will glow with equal brightness as long as the input voltage remains between 8 and 24 V. R=5/I, where I=desired LED current.
