CRO_AS_TV_MONITOR

Published:2009/7/15 4:31:00 Author:Jessie | From:SeekIC

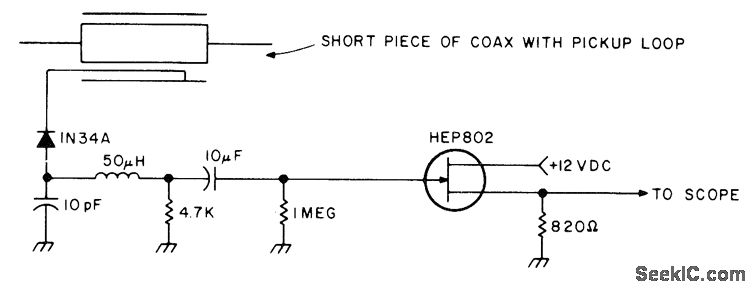

Permits monitoring transmitted amateur televison I signals with oscilloscope for such applications as checking sync levels and sync-pulse shape Outgoing signal can be monitored while adjusting modulator -Circuits、73 Magazine, March 1977 p 152.
