CS7232 touching stepless dimming light circuit (2)

Published:2011/7/18 19:01:00 Author:Lucas | Keyword: touching, stepless dimming light | From:SeekIC

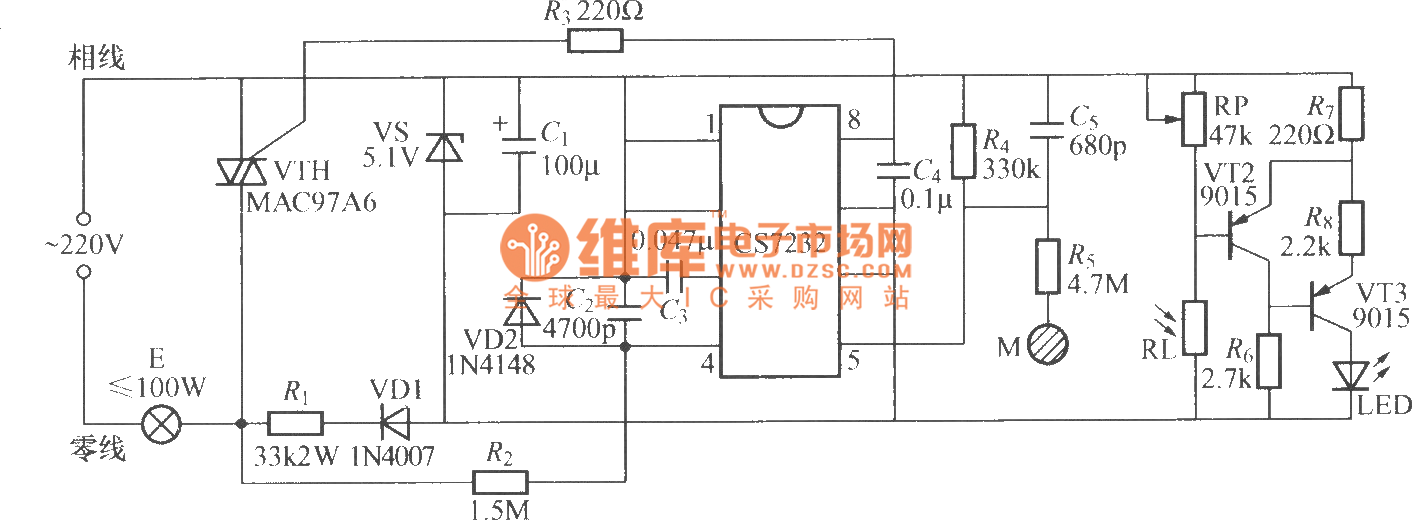

In the circuit shown as the chart, it adds a metering circuit,which can be used totransform an ordinary lamp intospecial eye protection high-dimming lamp.
