Dual flashing light string circuit ( 1 )

Published:2012/9/3 22:20:00 Author:Ecco | Keyword: Dual , flashing light string | From:SeekIC

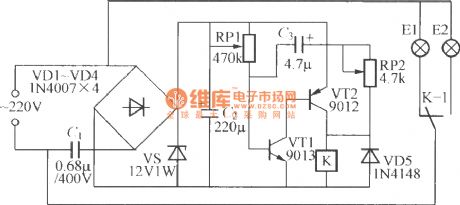

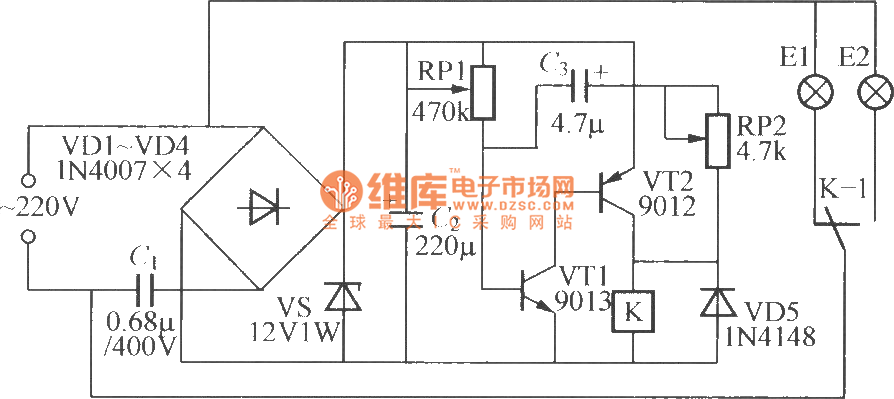

As shown in the figure, it is a two-way flashing light string controller. After getting power, it can make light strings E1 and E2 flash alternately, this circuit can also be transformed commercially double-headed ( lights) wall lamp, and two lights will flash alternately.
