FLASHING INDICATORS Circuit

Published:2013/3/4 21:49:00 Author:Ecco | Keyword: FLASHING INDICATORS | From:SeekIC

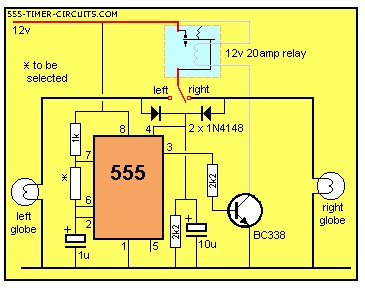

Need to flash turn indicators using a 555 and a single 20 amp relay. Here is our suggestion. The timing resistor needs to be selected for the appropriate flash-rate.
