Flashing Light Circuit

Published:2012/9/26 21:35:00 Author:muriel | Keyword: Flashing Light | From:SeekIC

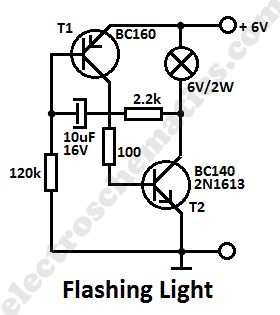

This simple flashing light circuit is powered with 6 volts/0.5A and has a low current consumption when the light bulb is off. The flashing frequency is set by only one capacitor. Transistor T1 may be replaced with BC160 and T2 with BC140. Simple Flashing Light Circuit Diagram
