Four-way flashing light string circuit (9) (M80056B)

Published:2012/8/31 1:17:00 Author:Ecco | Keyword: Four-way, flashing light string | From:SeekIC

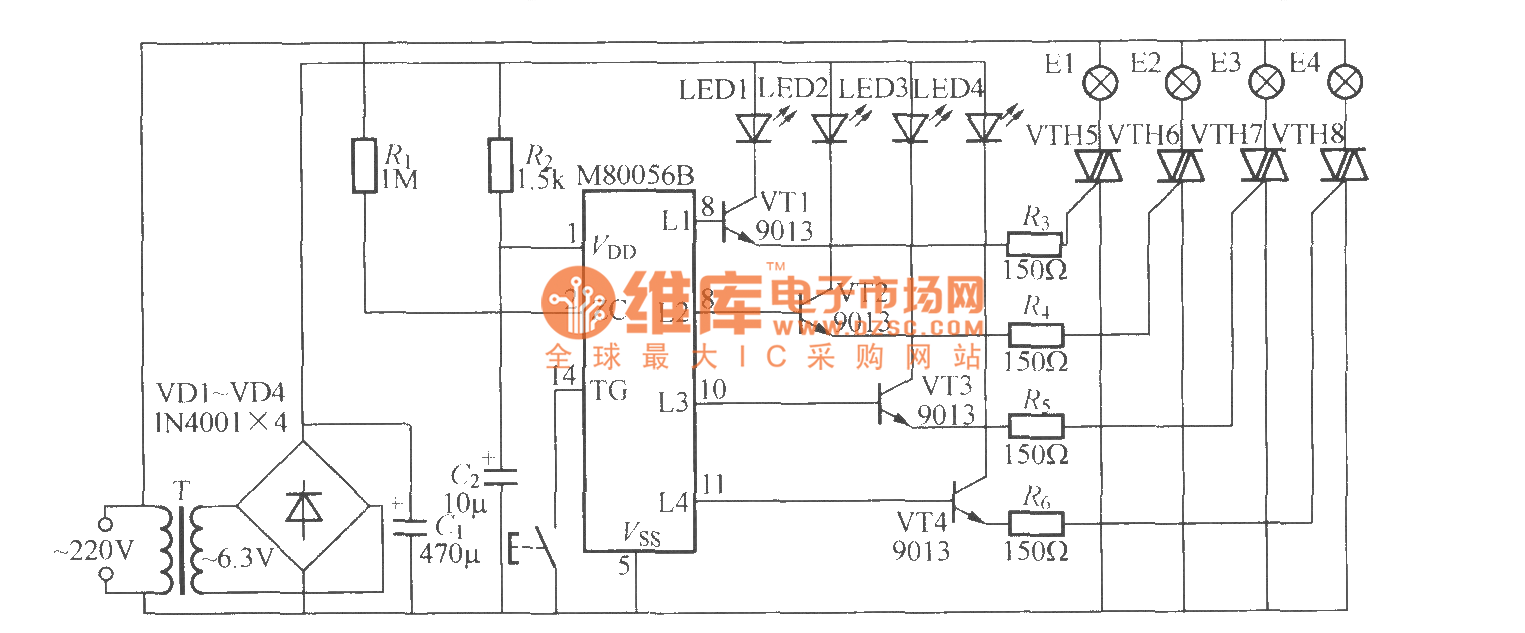

As shown in the figure, it is the high-power eight-figure four-road flashing light string controller with M80056B light controlled IC . VTH1~VTH4 should use 12A/600V thyristors; SB is the switch for lantern string pattern selection, once press SB one time, lantern string changes a cycling pattern.
