Integration (Quadrature) Demodulation Circuit

Published:2011/5/22 3:03:00 Author:Robert | Keyword: Integration, Quadrature, Demodulation | From:SeekIC

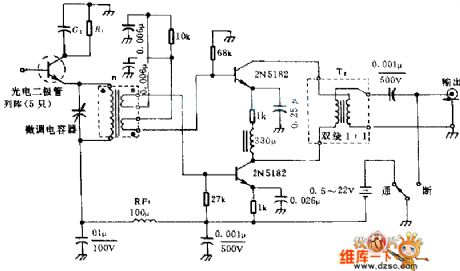

In this picture, the photodiode array is irradiated from the communication system's LED and then it would convert the light signals on the broadcast band. The circuit is similar with the 1:1 balanced-unbalanced converter and it has the single-channel input and double-channel output. The phase-shifting between the two output is 90°. The circuit would not require neutralization. It can give reasonably the high gain with low noise response.
