Inverting dual flasher circuit diagram

Published:2011/9/6 4:13:00 Author:Lucas | Keyword: Inverting dual flasher | From:SeekIC

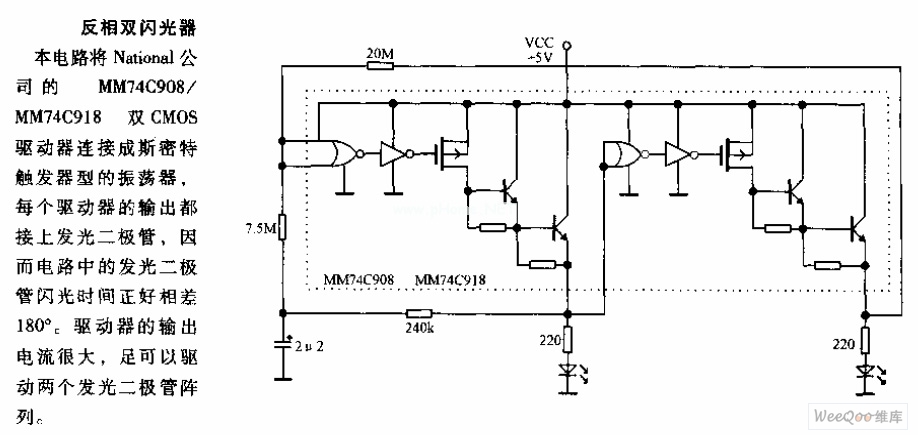

In this circuit, the National's MM74C908/MM74C918 dual CMOS driver is connected as Schmitt trigger type oscillator, and the output of each driver is connected to LED, so the flashing time of the circuit just has the difference in 180 degree. Driver's output current is high enough to drive the array with two light-emitting diodes.
