JFET_ac_COUPLED_INTEGRATOR

Published:2009/7/1 23:16:00 Author:May | From:SeekIC

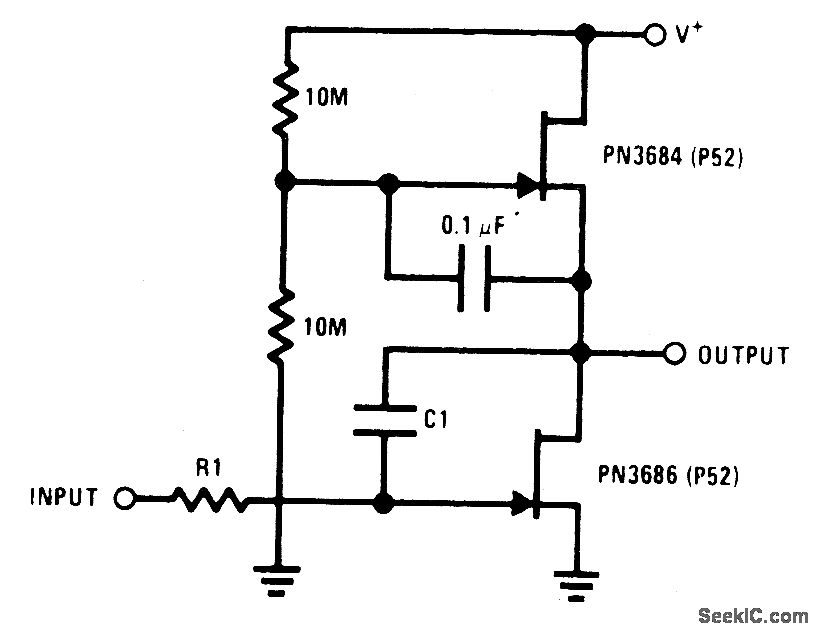

This circuit utilizes the μ-amp technique to achieve very high voltage gain. Using C1 in the circuit as a Miller integrator, or capacitance multiplier, allows this simple circuit to handle very long time constants.
