LCD_CONTRAST_TEMPERATURE_COMPENSATOR

Published:2009/6/18 4:26:00 Author:May | From:SeekIC

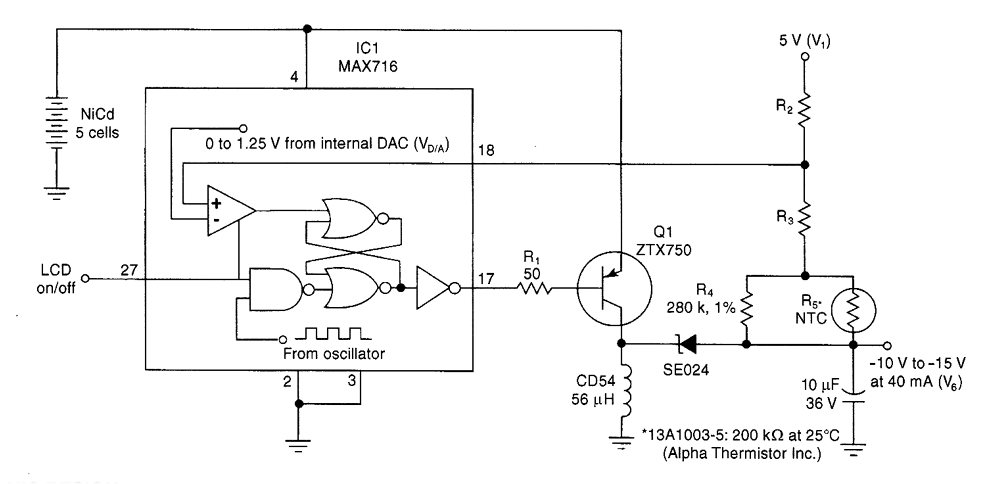

Negative temperature-coefficient resistor R5 modifies feedback in this switching regulator, which results in a negative output voltage that varies with temperature. With properly chosen resistor values, the circuit produces a temperature compensated bias voltage that ensures constant con-trast in an LCD.
