LED_FLASHER_USES_PUT

Published:2009/6/30 23:57:00 Author:May | From:SeekIC

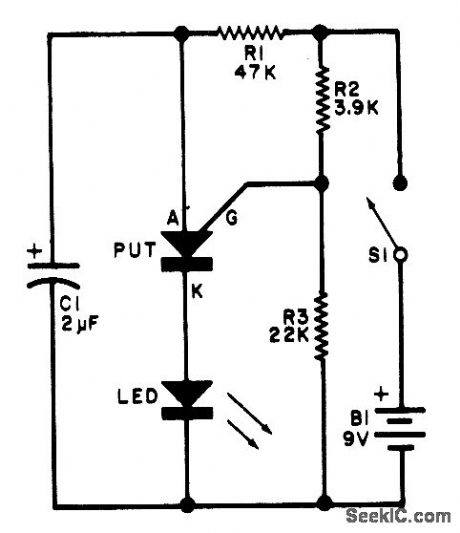

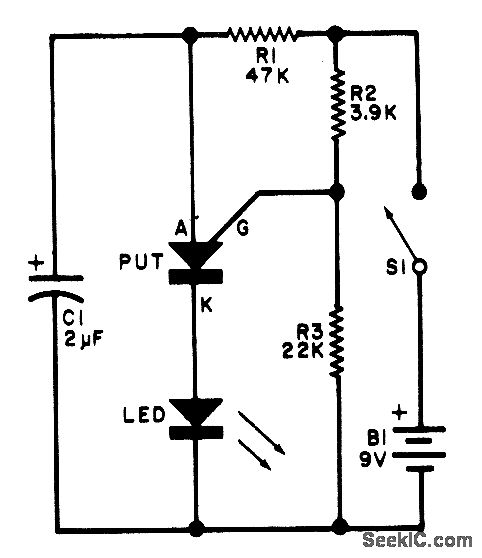

This flasher circuit operates as a relaxation oscillator with C1 discharged periodically through the LED as the PUT as the the put switches on. the flashing rate is about 100/minute with the component values listed.
