LED_Flasher_for_2_to_10_LEDs

Published:2009/6/17 0:10:00 Author:May | From:SeekIC

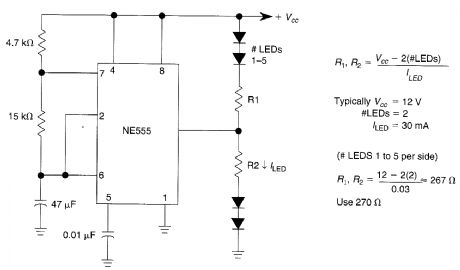

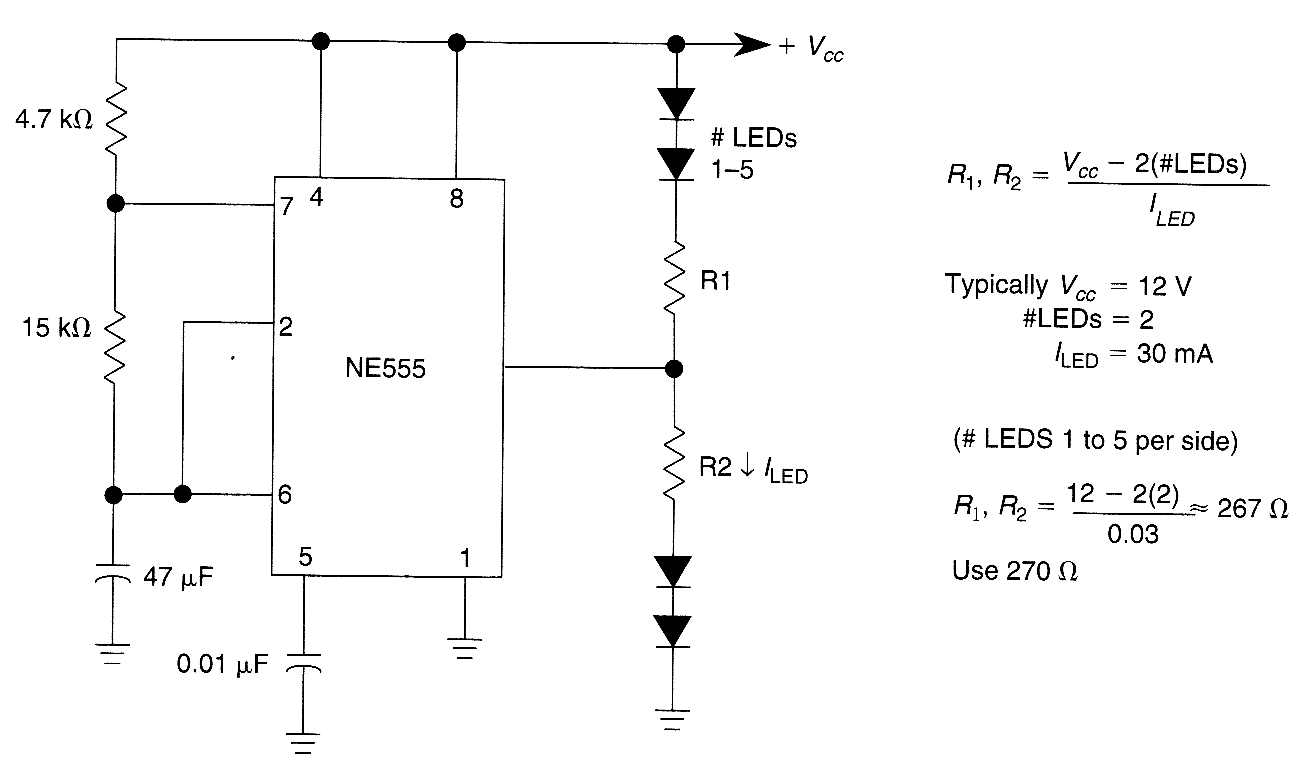

This LED flasher has double-ended output connection. The circuit can be used with 1 to 5 LEDs on each side as indicated.
