LED slow charge circuit

Published:2011/4/6 22:49:00 Author:Nicole | Keyword: LED, charge | From:SeekIC

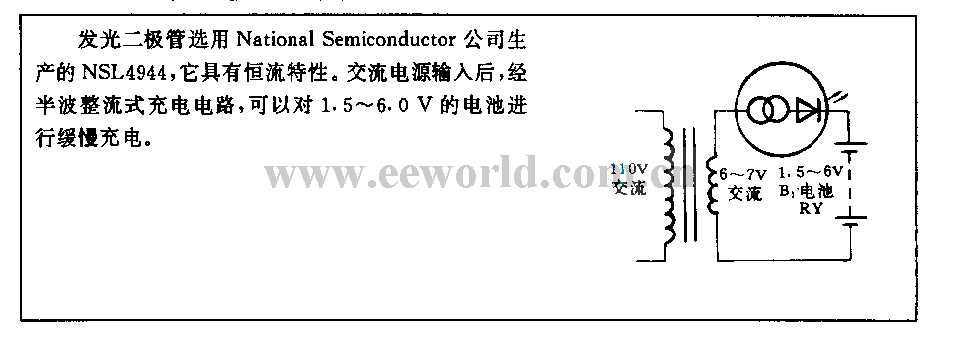

LED uses NSL4944 which produced by National Semiconductor Company, it has the characteristics of constant current. After input AC power supply, and through half wave rectification charging circuit, it can charge to 1.5~6.0V battery slowly.
