LOGIC_CONTROLS_25_W_LAMP

Published:2009/7/13 4:44:00 Author:May | From:SeekIC

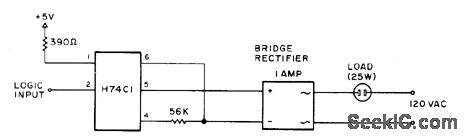

Ordinary 1-A bridge is used with H74C1 optoisolatorto pass full current to 25-W lamp when logic inρut goes low (to around,so full 5 V is applied to light source in optoisolator).-D. D. Mickle, Practical Computer Projects, 73 Magazine, Jan. 1978, p 92-93.
