LOSS_OF_LIGHT_DETECTOR

Published:2009/7/15 22:26:00 Author:Jessie | From:SeekIC

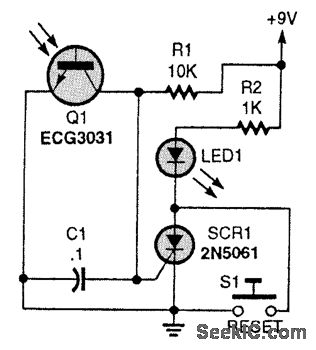

Light falling on Q1 causes Q1 to conduct. When the light fails, C1 charges toward +9V, triggering SCR1, lighting LED1. S1 resets the SCR.
