Light control street lamp circuit using NE555(2)

Published:2011/7/20 3:03:00 Author:zj | Keyword: Light control, street lamp circuit | From:SeekIC

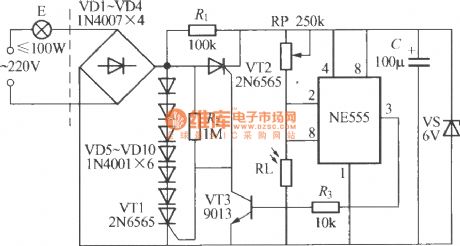

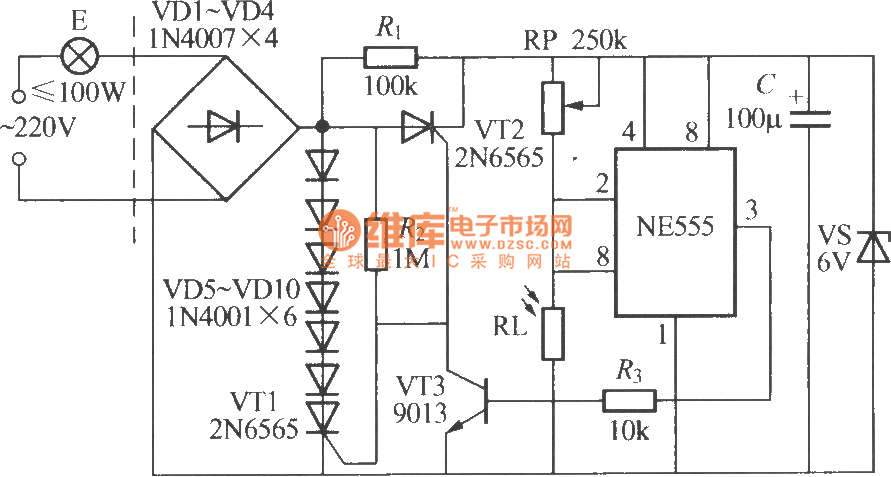

As the diagram shows the circuit is specially designed. The light control switch and the power grid adopt the two-wire connection method.It can directly replace common switch to make lighting lamp into light control street lamp.
