Light_target_flasher

Published:2009/7/19 23:27:00 Author:Jessie | From:SeekIC

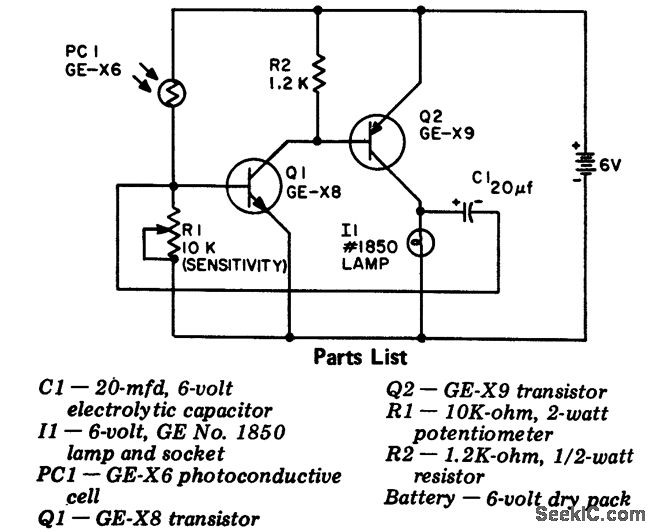

Light target flasher. Photoresistor PC1 starts the flasher circuit whenever light hits it. Sensitivity control R1 is adjusted so that the flasher stops whenever the light source is removed (courtesy General Electric Company).
