MOS_LAMP_DRIVER

Published:2009/6/17 2:10:00 Author:May | From:SeekIC

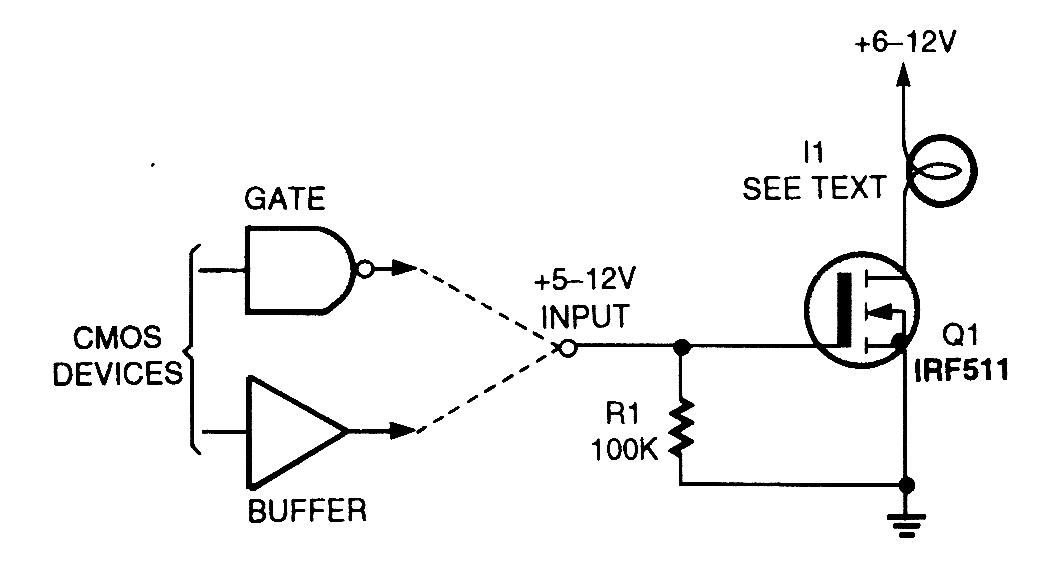

The circuit shows a way of using a MOSFET as a load driver. I1 can be a lamp, or any other load, that does not exceed the current rating of Q1.
