MOTOR_TRANSIENT_ANTICIPATOR

Published:2009/7/13 3:36:00 Author:May | From:SeekIC

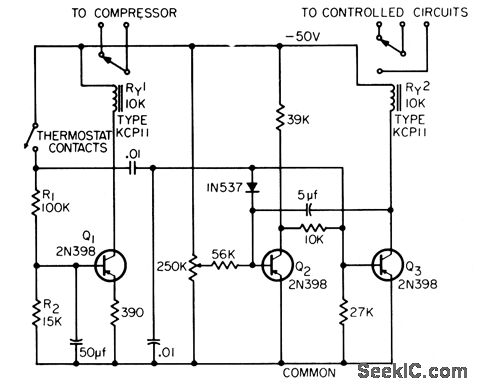

Disconnects battery supply of sensitive counters for preset interval during switching period of nearby air conditioner, to avoid extraneous counts by switching transients from compressor motor and control relays.-C. H. Harris, Motor Transient Anticipator, EEE,13:5, p45-46.
