Points, line overflow LED display circuit with LM3914

Published:2012/10/8 21:01:00 Author:Ecco | Keyword: Points, line overflow, LED display | From:SeekIC

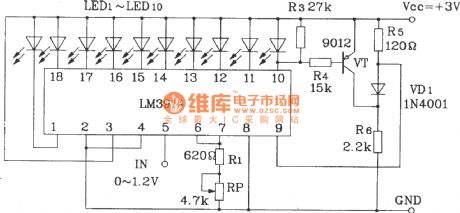

This circuit is in point working mode when it has no overflowing. When it is overflowing, LED changes into line display mode, thus indicating the overflowing.
