Pyroelectric infrared sensor automatic lamp circuit (3)

Published:2012/8/28 22:55:00 Author:Ecco | Keyword: Pyroelectric infrared , sensor , automatic lamp | From:SeekIC

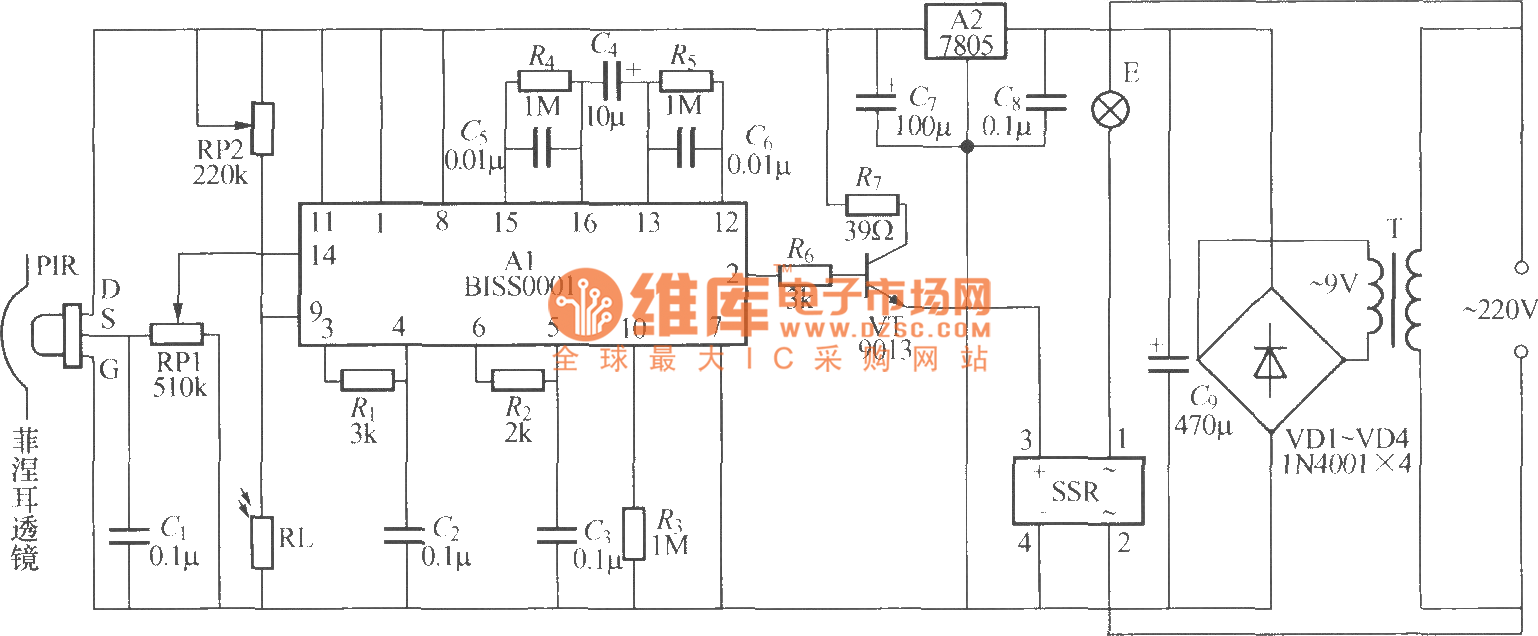

As shown in the figure, it is a sensing automatic lamp circuit using BISS0001 infrared sensing signal processing integrated circuit, the work is very stable and reliable, and it can be used in the bathroom, storage room, automatic lighting. PIR can use P228, PH5324, LH956 pyroelectric infrared sensors with installing Fresnel lens. SSR uses the JCX-2F-DC5V zero compact solid state relay, and it is compact and can be plugged and directly on the printed circuit board. Other components requirements are shown as the figure.
