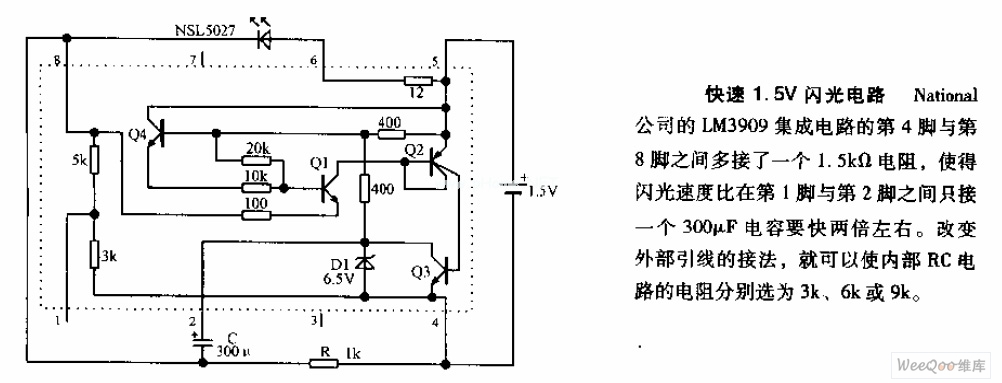

Quick 1.5V flashing circuit diagram

Published:2011/8/30 21:06:00 Author:Lucas | Keyword: Quick 1.5V flashing | From:SeekIC

There is an increased 1.5kΩ resistor connected between pin 4 and pin 8 of National's LM3909 IC, and it makes the flashing rate be 2 times quicker than the 300μF capacitor between pin 1 an dpin 2. Changing the connection of external leads can make the resistance of the internal RC circuit select in 3K, 6K or 9K.
