RF_OUTPUT_INDICATOR

Published:2009/6/28 22:32:00 Author:May | From:SeekIC

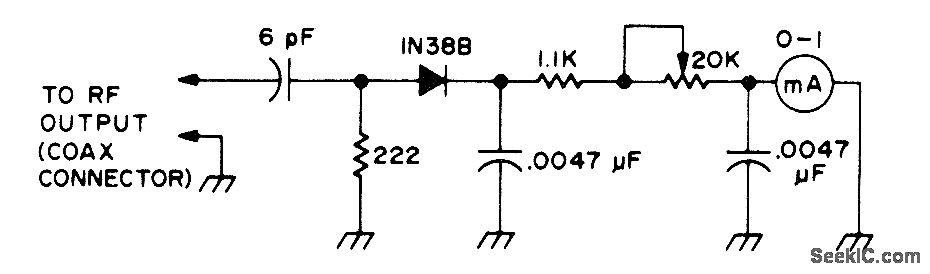

Designed for use with amateur radio transmitters Pot is adjusted for maximum desired indication on band usedFor 20-10 meters、6-pF capacitoris adequateOn lower bands (80-40 meters), use 7 or 12 pF instead.-Novice Q & A 73 Magazine, Holiday issue 1976, p 20.
