Regulated Dual White LED Lamp

Published:2013/3/7 2:52:00 Author:Ecco | Keyword: Regulated , Dual , White LED Lamp | From:SeekIC

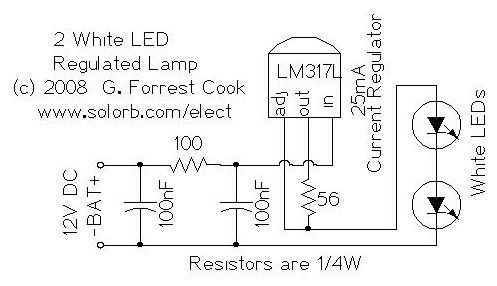

This is an ultra-simple LED spot lamp that uses two white LEDs and a current regulator circuit. It is designed for use in 12V solar powered and automotive/boating applications, but can be used in many other applications. Only seven components are used in this circuit. It produces regulated light output across the 11V to 20V voltage range. The circuit board is potted in silicone to make the lamp completely waterproof.
