SIMPLE_COLOR_ORGAN

Published:2009/6/18 4:21:00 Author:May | From:SeekIC

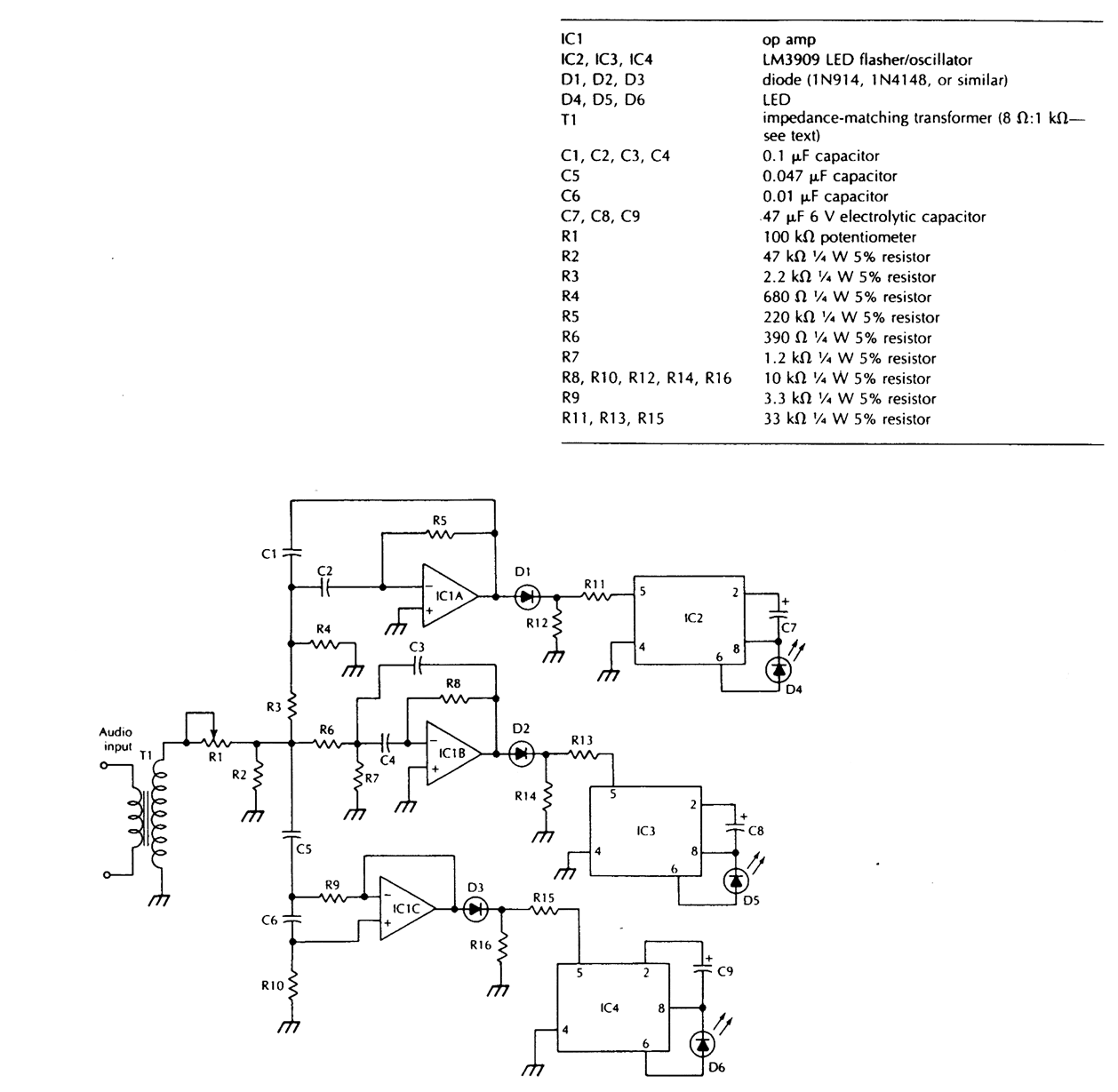

Three active filters that divide the audio spectrum into three bands drive rectifiers and then drive IC2, 3, and 4, flashing the LEDs at 6 Hz. D4, D5, and D6 should be three different colors for best effect.
