SINGLE_LAMP_FLASHER

Published:2009/7/6 8:45:00 Author:May | From:SeekIC

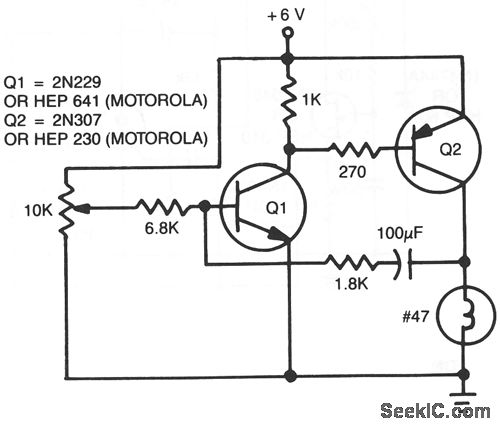

The flash rate is controlled by a complementary multivibrator consisting of an npn and a pnptransistor．
