SOUND_TRIGGERED_FLASH

Published:2009/7/10 3:49:00 Author:May | From:SeekIC

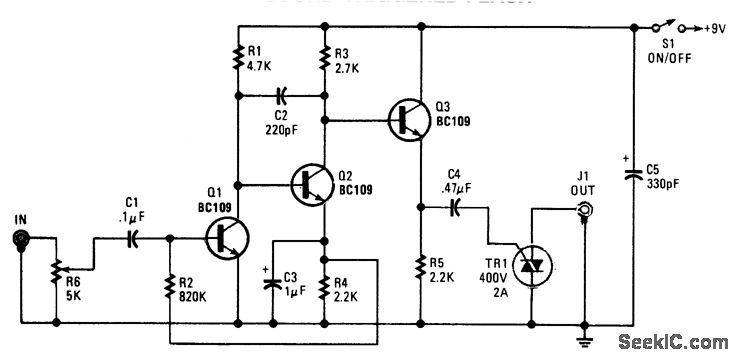

Audio input from a microphone drives amplifier Q1/Q2/Q3 to produce an ac voltage across R5. C4 couples this to TRI, causing it to conduct, triggering photoflash or other device that is connected to J1.
